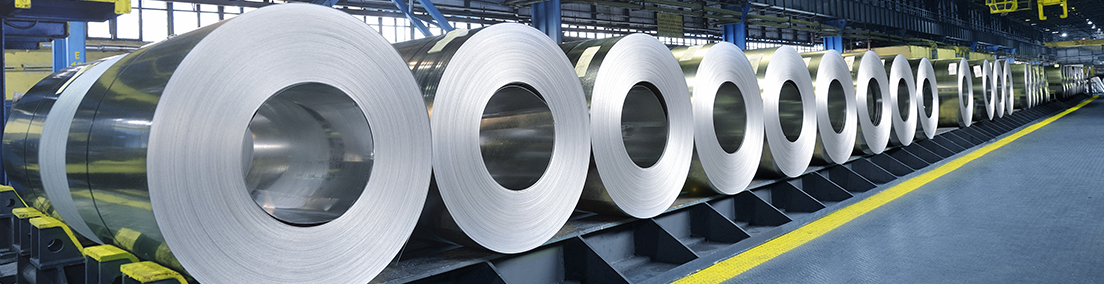

Galvanized Steel Sheets

1). Hot-Dip Zinc coated

JIS G3302 SGHC,SGH,SGCC,SGCH,SGCD,SGC
ASTM A 361, ASTM A 653, ASTM A 924,
BS 3083-88, BS EN 10142-91, BS EN 10143-93, BS EN 10147-92
DIN 59231-53 ISO 3575-76(01/02/03/04/05), ISO 4998-96(220/250/280/550)
Australia/N.Z. AS1397 G250 Z275

2). Electrolytic Zinc coated

JIS G3313 SEHC, SEHD, SEHE, SEFH, SE, SEPH, SECC, SECD, SECE, SEFC
ASTM A 591
BS EN 10152-94, DIN EN10152-93, NF EN 10152-94
ISO 5002-82

3). Hot-Dip 55% Aluminum-Zinc alloy coated (Galvalume)

JIS G 3321
ASTM A 792/ A792M
BS EN 10215

4). Hot-Dip Aluminum Coated

JIS G 3314 SA1C,SA1D, SA1E, SA2C
ASTM A 463
BS EN 10215-95
ISO 5000-93

Dimensions :

Thickness : 0.40 – 3.00mm
Width : 914 – 1520mm
Length : Coil or Sheet

Standard Packing

Special care is given to prevent abrasion, rust and scratch during transportation
and shipment, the procedures are illustrated as follows.
Unit weight is usually 2-5mt for sheet, 4-20mt for coils upon to the request
